螺牙規格：公制牙（Metric）
適配軟管 | 螺牙規格 | 編號 | 螺紋外徑 (mm) | 螺紋長度 | 包裝 （個/包） | 型號鏈接 |
AD10.0 | M12 x 1.5 | RTF-M12-10.0 | 12 | 10 | 50 | 點此查看 |
AD13.0 | M16 x 1.5 | RTF-M16-13.0 | 16 | 10 | 50 | 點此查看 |
AD15.8 | M16 x 1.5 | RTF-M16-15.8 | 16 | 12.5 | 50 | 點此查看 |
M18 x 1.5 | RTF-M18-15.8 | 18 | 12.5 | 50 | 點此查看 | |
M20 x 1.5 | RTF-M20-15.8 | 20 | 12.5 | 50 | 點此查看 | |
AD18.5 | M20 x 1.5 | RTF-M20-18.5 | 20 | 13 | 50 | 點此查看 |
AD21.2 | M20 x 1.5 | RTF-M20-21.2 | 20 | 13 | 50 | 點此查看 |
M24 x 1.5 | RTF-M24-21.2 | 24 | 13 | 50 | 點此查看 | |
M25 x 1.5 | RTF-M25-21.2 | 25 | 13 | 50 | 點此查看 | |
AD25.0 | M25 x 1.5 | RTF-M25-25.0 | 25 | 13 | 50 | 點此查看 |
AD28.5 | M25 x 1.5 | RTF-M25-28.5 | 25 | 13 | 20 | 點此查看 |
M27 x 1.5 | RTF-M27-28.5 | 27 | 13 | 20 | 點此查看 | |
M30 x 1.5 | RTF-M30-28.5 | 30 | 13 | 20 | 點此查看 | |
AD34.5 | M32 x 1.5 | RTF-M32-34.5 | 32 | 14.5 | 10 | 點此查看 |
M36 x 1.5 | RTF-M36-34.5 | 36 | 14.5 | 10 | 點此查看 | |
M40 x 1.5 | RTF-M40-34.5 | 40 | 14.5 | 10 | 點此查看 | |
AD42.5 | M40 x 1.5 | RTF-M40-42.5 | 40 | 15 | 5 | 點此查看 |
AD54.5 | M50 x 1.5 | RTF-M50-54.5 | 50 | 16 | 5 | 點此查看 |
M63 x 1.5 | RTF-M63-54.5 | 63 | 16 | 5 | 點此查看 |
螺牙規格：德制PG牙
適配軟管 | 螺牙規格 | 編號 | 螺紋外徑 (mm) | 螺紋長度 | 包裝 （個/包） | 型號鏈接 |
AD10.0 | PG7 | RTF-PG7-10.0 | 12.5 | 10 | 50 | 點此查看 |
AD13.0 | PG9 | RTF-PG9-13.0 | 15.2 | 10 | 50 | 點此查看 |
AD15.8 | PG11 | RTF-PG11-15.8 | 18.6 | 10 | 50 | 點此查看 |
AD18.5 | PG13.5 | RTF-PG13.5-18.5 | 20.4 | 11 | 50 | 點此查看 |
AD21.2 | PG16 | RTF-PG16-21.2 | 22.5 | 13 | 50 | 點此查看 |
AD28.5 | PG21 | RTF-PG21-28.5 | 28.3 | 13 | 20 | 點此查看 |
AD34.5 | PG29 | RTF-PG29-34.5 | 37 | 14.5 | 10 | 點此查看 |
AD42.5 | PG36 | RTF-PG36-42.5 | 47 | 14.5 | 5 | 點此查看 |
AD54.5 | PG48 | RTF-PG48-54.5 | 59.3 | 16 | 5 | 點此查看 |
螺牙規格：英制G （PF）
適配軟管 | 螺牙規格 | 編號 | 螺紋外徑 (mm) | 螺紋長度 | 包裝 （個/包） | 型號鏈接 |
AD21.2 | G1/2 | RTF-G1/2-21.2 | 20.955 | 13 | 50 | 點此查看 |
AD28.5 | G3/4 | RTF-G3/4-28.5 | 26.441 | 13 | 20 | 點此查看 |
AD34.5 | G1 | RTF-G1-34.5 | 33.249 | 14.5 | 10 | 點此查看 |
AD42.5 | G1 1/4 | RTF-G1 1/4-42.5 | 41.91 | 15 | 5 | 點此查看 |
AD54.5 | G1 1/2 | RTF-G1 1/2-54.5 | 47.803 | 16 | 5 | 點此查看 |
G2 | RTF-G2-54.5 | 59.614 | 16 | 5 | 點此查看 |
NPT牙可定制..可訂做V0防火阻燃材質和UL材質.

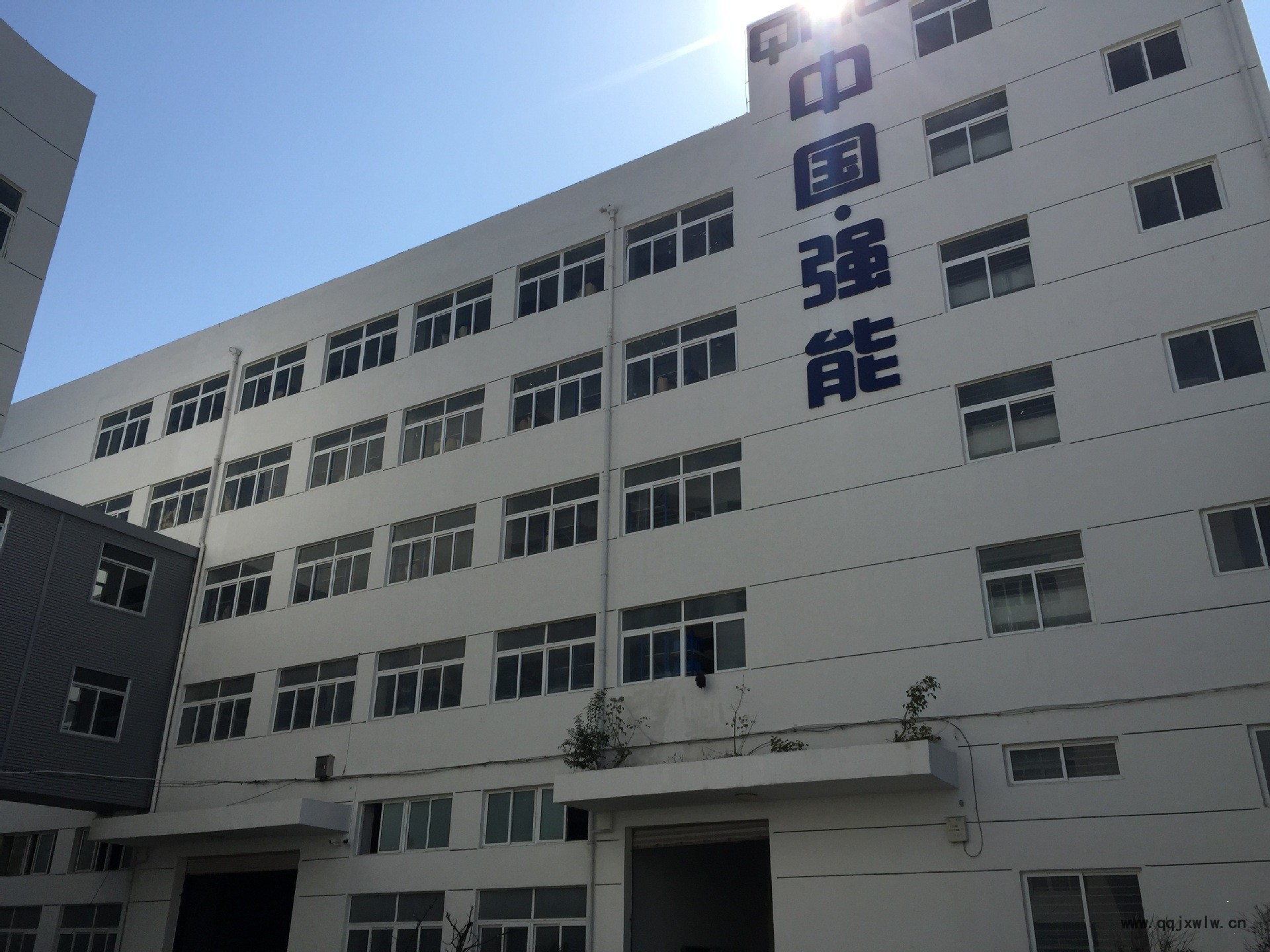

公司名稱：強能電氣有限公司
公司面積：自有工廠面積13000多平方
注冊資金：5000萬人民幣
模具研發：1個研發設計中心
行業經驗：15年
公司認證：PG系列M系列NPT系列通過美國UL認證，,CE,RoHS,TUV深度驗廠,IP68
