型號 | HD67048 |
---|---|
材質 | 塑料 |
產地 | 意大利 |
產品型號 | HD67048 |
電機功率 | 5W |
類型 | 便攜式 |
品牌 | ADFWeb |
CAN轉以太網網關
本設備支持CAN到以太網的雙向通信功能,可用于CAN設備與帶以太網接口的PLC、計算機及HMI進行通信。
HD67513使用TCP/IP及UDP報文,允許CAN及以太網設備通過以太網報文交換數據。
HD67048提供完全透明的CAN報文。使用本設備可以利用以太網搭建一個CAN網絡,如計算機可通過以太網或互聯網訪問CAN網絡。

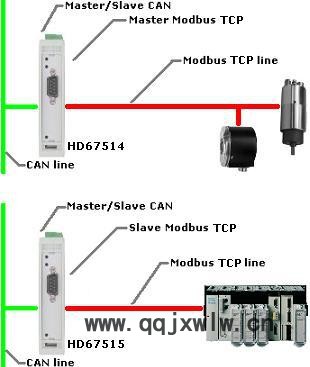

HD67514是Modbus TCP主設備轉CAN的網關。
HD67515是Modbus TCP從設備轉CAN的網關
優點:
Order Code | Description | Dim.(DxWxH)mm | Operating Temperature |
HD67048 | Gateway CAN from/to Ethernet Transparent Tunnelling frame | 120x23x107 | -30° to +70° |
HD67048M | Gateway CAN from/to Ethernet Transparent Tunnelling frame | 71x60x95 | -30° to +70° |
HD67513-A1 | Gateway CAN from/to Ethernet (housing type A) | 120x23x107 | -30° to +70° |
HD67513-B2 | Gateway CAN from/to Ethernet (housing type B) | 71x60x95 | -30° to +70° |
HD67514-A1 | Gateway CAN from/to Modbus TCPMaster(housing type A) | 120x23x107 | -30° to +70° |
HD67514-B2 | Gateway CAN from/to Modbus TCPMaster(housing type B) | 71x60x95 | -30° to +70° |
HD67515-A1 | Gateway CAN to Modbus TCPSlave(housing type A) | 120x23x107 | -30° to +70° |
HD67515-B2 | Gateway CAN to Modbus TCPSlave(housing type B) | 71x60x95 | -30° to +70° |
![]() | ![]() |
| 優點: 軟件方便配置專為serius使用很容易配置低成本din mountable軌道電化隔離工業溫度范圍:-30°/ 70°(-22°F / 158°F) |
