| 產品別名 | 開槽機 |
|---|---|
| 成品尺寸 | 2600*1500 |
| 規格 | 2700*1500 |
| 適用對象 | 奶茶,酸奶,鮮奶,果汁飲料,碳酸飲料,煙 |
| 售后服務 | 整機保修兩年 |
| 外形尺寸 | 3500*4500*1500 |
| 用途 | 切紙機 |
| 適用行業 | 餐飲,食品,玩具,**,醫藥,禮品,工藝品 |
| 包裝類型 | 箱 |
| 品牌 | 科騰龍 |
| 型號 | 2700 |
| 加工定制 | 是 |
| 自動化成度 | 半自動 |
本公司供應紙箱機械、紙箱設備、機械設備、開槽機科騰龍2700科騰龍 是 切紙機 箱 奶茶,酸奶,鮮奶,果汁飲料,碳酸飲料,煙 餐飲,食品,玩具,**,醫藥,禮品,工藝品，質量保證，歡迎咨詢洽談。
用途與特點：

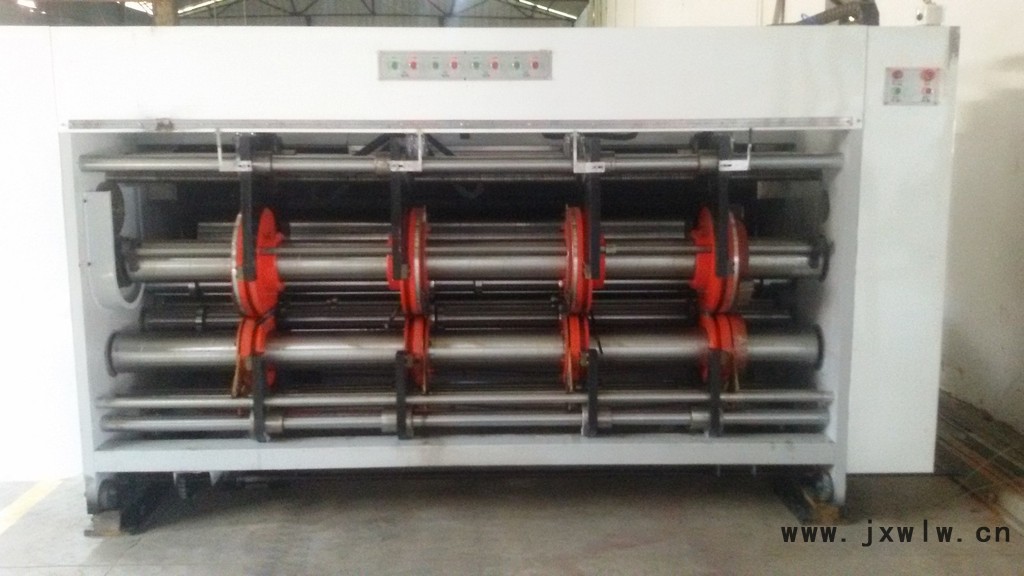

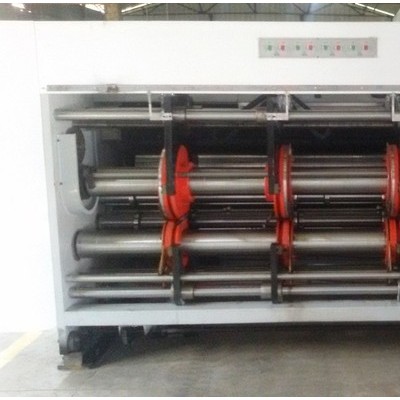

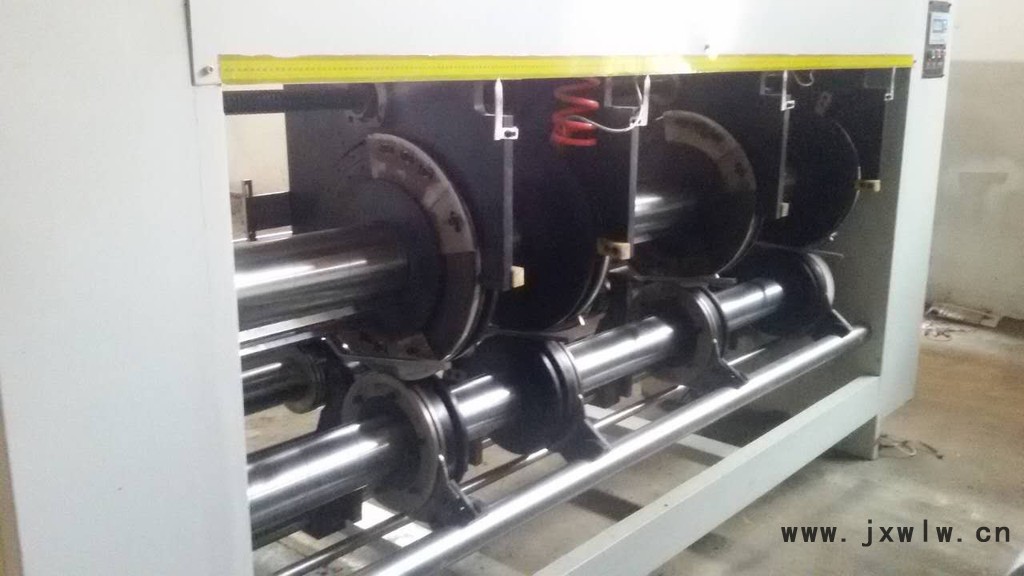

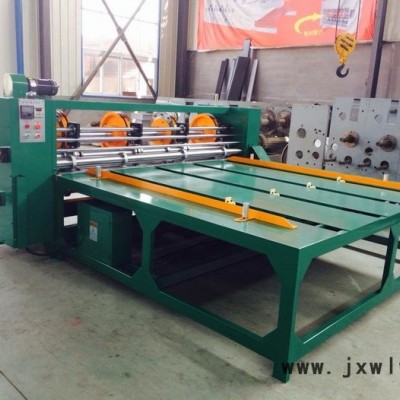

本系列瓦楞紙板分紙滾線切角開槽機，是將瓦楞紙板毛坯切角開槽、滾線、切邊幾工序合為一體的綜合性生產設備。其主要特點為單張紙板手工喂料，一般翹曲的紙板均可適用。
相位電動360°行星結構調整；配臺灣減速剎車馬達，編碼脈沖監控，更靈敏、準確；微電腦顯示，內存附有相位調整記憶和自動歸零(可選)功能。開槽、壓線實現同步調，節省換單時間。齒輪噴淋式潤滑系統。
Features:
This series corrugated cardboard slitting、rolling、cutaway、slotted machine is a integrity production facility which combined semifinished corrugated cardboard cutaway slotted 、rolling、cutaway etc working procedures. The major characteristic is can feeding by hand for each cardboard, so available for general cardboard. Electric 360 degree phase adjustment with showdown shake motors from TaiWan, coded pulse monitor, sensitive and accurate. Show by microcomputer, memory with phase adjustment memory and auto-zero(choose) faction. Slotted and line ball on the same time, so save the time. Spraying lubricating system adopt in the gear.
技術參數 Technological Parameter:
| 型 號Model | 過紙面積(mm2) Over the paper area | 開槽深度 Slotting depth | 工作速度(片/分） Working speed(pieces/min) | 傳動方式 way of transmission |
| FYQ-2200 | 2150×1470 | 360 | 0-60 | 鏈條 |
| FYQ-2500 | 2450×1470 | 360 | 0-60 | 鏈條 |
| FYQ-2200 | 2150×1650 | 410 | 0-60 | 鏈條 |
| FYQ-2500 | 2450×1650 | 410 | 0-60 | 鏈條 |
本機型號由FYQ-1800到FYQ-3500均可定做。 This model number be arrived by FYQ-1800 to FYQ-3500 all can make to order.
