| 產地 | 浙江 |
|---|---|
| 外形尺寸 | 80*50*30 |
| 重量 | 100KG |
| 品牌 | 欣睿激光 |
| 型號 | XR-WS300 |
特點: Feature:
●采用英國進口陶瓷聚光腔體，耐腐蝕、耐高溫、壽命（8-10）年，氙燈壽命800萬次以上。
imported ceramic condenser chamber, corrosion resistance, high temperature resistance, life expectancy (8-10), xenon lamp life 8 million times.
●采用世界上最先進的自動遮光系統，消除了在工作時光對眼睛的刺激。
The use of the world's most advanced automatic shading system, eliminating the work time on the eye of the stimulus
●激光頭可旋轉360度，光路部份可轉動360度，上下電動升降前后推動適合大、中、小型模具的修補。

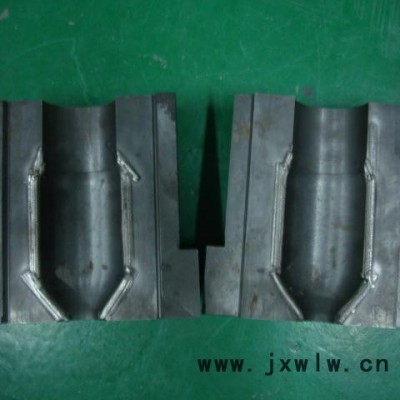

The laser head can rotate 360 degrees, and the light path part can rotate 360 degrees, and the upper and lower electric lifting drive is suitable for the repair of large, middle and small mold.
●參數調節采用智能化遙控器控制，操作簡單、快捷。
Parameter adjustment using intelligent remote control, easy to operate, fast
適用材料: Applications
適用于航空、機械、電子、通訊、動力、化工、汽車制造等行業; 鋰離子電池密封焊接(手機電池、動力電池),軍工行業傳感器、電子元器件的精密點焊及密封焊接(繼電器)
machinery, electronics, communication, power, chemical industry, automobile manufacturing;
Lithium ion battery sealed welding; military industrial sensors, electronic components, precision welding and sealing welding.
技術參數technical parameter
|
| XR-MW200 | XR-MW300 | XR-MW400 | XR-MW500 | |||
| 最大激光功率 Max. laser output power | 200W | 300W | 400W | 500W | |||
| 激光波長 Laser wavelength | 1064nm | ||||||
| 最大單脈沖能量 Max. Pulse power | 70J | 80J | 90J | 100J | |||
| 焊接頻率焊接頻率 Welding frequency | ≤100KHz | ||||||
| 脈沖寬度 Pulse width | ≤20ms | ||||||
| 光斑直徑 Spot diameter | 0.1-3.0mm | ||||||
| 焊接深度 Welding depth | 0.1-2.0mm | 0.1-2.5mm | 0.1-3.0mm | 0.1-4.0mm | |||
| 整機耗電功率 Power consumption | 6KW | 10KW | 12KW | 12KW | |||
| 電力需求 Power supply | AC220V/50Hz | AC380V /50Hz 3P+PE | AC380V /50Hz 3P+PE | ||||
| 焊絲直徑 welding wire diameter | 0.1mm～0.8mm | ||||||
| 冷卻系統 Cooling system | 水冷water cooling | ||||||
