| 加工定制 | 是 |
|---|---|
| 類型 | 空氣冷卻器 |
| 傳熱方式 | 間壁式換熱器 |
| 用途 | 通風采暖、空氣加熱、染整烘干、除濕干燥等工程，特別適用于低溫差表冷器的換熱工況 |
| 品牌 | 超凌 |

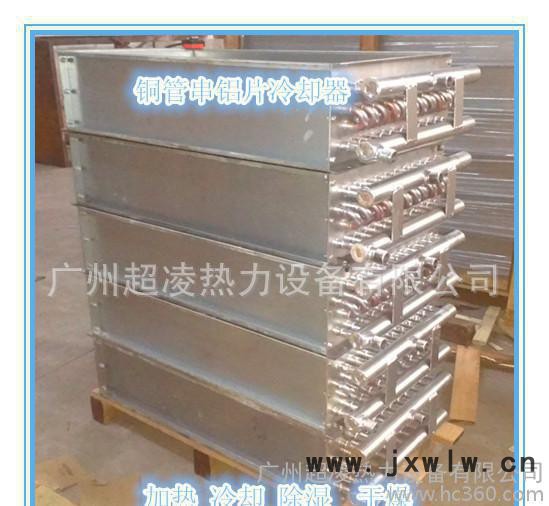

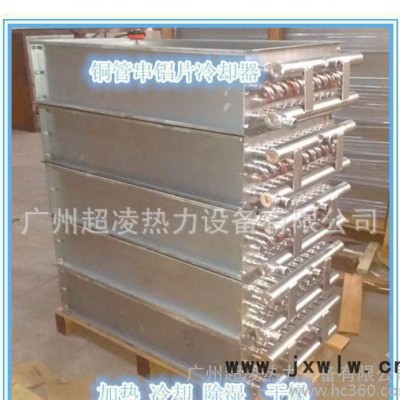

TLS型散熱器是由紫銅管串鋁片式的高效熱交換器，它采用了選進的機械脹管和橋式波紋雙翻邊鋁肋片結構。機械脹管使紫銅管與鋁片接觸緊密，橋式波紋使流體的紊流狀態更好，大大提高了換熱系數，先進的結構加上水路行程、管距、片距設計合理，從而具有良好的傳熱性能，空氣阻力小，結構緊湊，重量輕等特點。它可廣泛應用于空調制冷(蒸發器、冷凝器）、通風采暖、空氣加熱、染整烘干、除濕干燥工程等，特別適用于低溫差表冷器的換熱工況。
TLS型散熱器換熱元件采用φ16x1.0mm或φ10x0.5mm紫銅管串0.15~0.2mm厚鋁片制成，有2.0~3.2mm多種片距，可滿足不同工況需要。
耐壓高達2.0Mpa，溫度達185℃。
TLS type radiator is a high efficient heat exchanger by copper series aluminumchip, it uses the selected into the mechanical expansion pipe and a bridge typecorrugated flange aluminum fin structure. The mechanical expansion pipe to makecontact with the aluminum sheet copper tube tightly, bridge type corrugated maketurbulent state better fluid, greatly improves the heat transfer coefficient, advancedstructure, plus the waterway pipe distance, travel distance of the film design is reasonable, and has good heat transfer performance, small air resistance,compact structure, light weight and so on. It can be widely used in refrigeration and air conditioning (evaporator, condenser), ventilation and heating, air heating,drying, dehumidification drying dyeing and finishing engineering, especially suitable for low temperature difference of heat transfer surface cooler conditions.
TLS type radiator heat exchange element uses Phi Phi 10x0.5mm copper on16x1.0mm or 0.15~0.2mm thick aluminum sheets, 2.0~3.2mm has a wide range ofdistance, which can meet the requirements of different working conditions.
Pressure up to 2.0Mpa, the temperature of 185 DEG C.
