| 品牌 | 青計 |
|---|---|
| 型號 | JD6-3A |

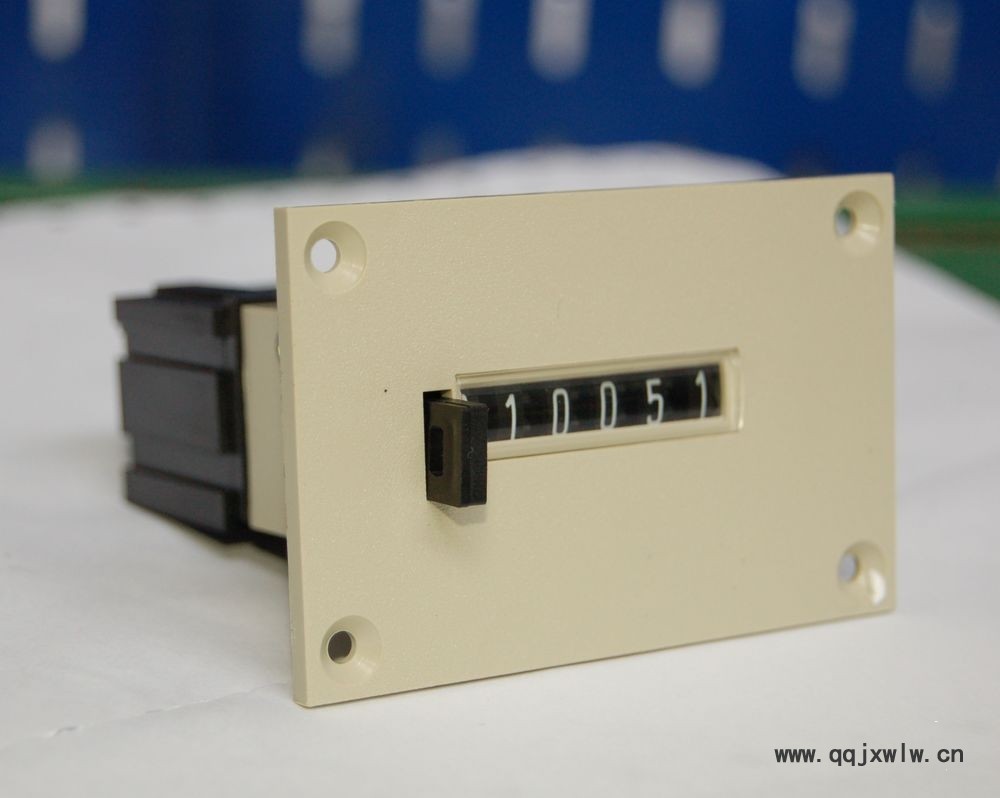

商品描述：產品名稱：JD6- ⅢA型六位電磁計數器
聯系人 張先生 13375575323 QQ: 1770591171
工作原理及簡介：JD6- ⅢA型六位電磁計數器，用于記錄電信號次數的累計，且可以按動回零，能與二次儀表組成數字儀表。廣泛用于石油、化工、紡織、機械、食品、印刷等行業的電脈沖計數。
產品系列及相關技術參數：
型號 | JD6- ⅢA |
顯示數字規格(高×寬) | 4 mm×1.8 mm |
工作溫度 | -10℃～+50℃ |
相對濕度 | ≤85% |
最大積算容量 | 999999 |
工作電壓(波動范圍:±10%) | DC:12V~220V各種規格型號;AC:24V~240V各種規格型號 |
計數速度 | DC:≤20次/秒;AC:≤10次/秒 |
功率 | AC:4.0VA;DC:2.75W |
可根據客戶需要設計制作 | |
產品安裝尺寸圖：
Product name: JD6_ⅢA 6-digits Electromagnetic Counter
Working principle and introduction: It is used to record the accumulative times of electrical signals, and it has push-reset mechanism, together with other meters it can form digital instruments, it is widely applied in petrol chemistry, textile, machinery, foodstuff and printing industry for counting of electrical pulses. Technical Parameters: Display digit size H x W: 4 x 2mm Max. capacity of accumulative counting 999999 Voltage kind DC12-220V; AC24-220V Counting speed AC, 4.0VA; DC, 2.75W Ambient temperature -10℃ - +50℃ Relative humidity < 85% Weight 150g
Technical parameters:
Model | JD6_ⅢA |
Display digit size (H×W) | 4mm×1.8mm |
Ambient temperature | -10℃～+50℃ |
Relative humidity | ≤85% |
Max. capacity of accumulative counting | 999999 |
Operation voltage (fluctuation range:±10%) | DC12～220V(various specifications and models); AC24～240V(various specifications and models) |
Counting speed | DC：≤20times/sec; AC: ≤10times/sec |
Power | AC, 4.0VA; DC, 2.75W |
This product can be designed and manufactured according to customer’s needs | |
Product installation dimension diagram:
