規格：

**大尺寸：10“長×4.25”高x 6.4“寬
探針：304不銹鋼，密封膠，聚芳酯纖維增強體全氟乙烯丙烯共聚物 電纜護套，同軸電纜
殼體材料：不銹鋼，聚甲醛（聚甲醛）探頭支架，聚氯乙烯面板，不銹鋼緊固件

電池：2節AA堿性電池壽命約200小時，電池制造商的電池工作 溫度范圍-4 至130℉, -20 至 54℃

注：如果環境溫度極低或極高電池可能無法提供充足的電力

溫度：分辯率：0.01

范圍：-40 至+400℉

             -40 至+204℃

**度：

±0.2℉ 從 32 至 200℉

±0.5℉從 200 至 400℉

±0.1℃ 從 0 至 100℃

±0.3℃ 從 100 至 200℃

 4點NIST可追蹤測試報告

長期漂移不超過0.05％/年 符合API要求

操作屬性

易于更換的AA電池，提供的估計200小時運行。

邏輯電路會自動顯示電池電量不足時，自動關機二十分鐘后，顯示溫度趨勢和穩定，故障確定顯示的錯誤代碼。

低功耗背光，方便夜間操作是為了方便和節約電池的光電傳感器控制。

在夜間條件下的背光照明顯示。

攝氏或華氏單位C/F的指示可以很容易地從功能按鈕選擇。

典型應用

密閉輸送，庫存，儲罐，管道，駁船，船舶，鐵路槽， 油罐車（推薦操作：API7，油輪和油碼頭安全指南）

其他應用：檢驗系統API4

物質材料：所有石化產品，腐蝕性，耐酸、堿，粉末。糖蜜，糖漿，蒸餾酒。

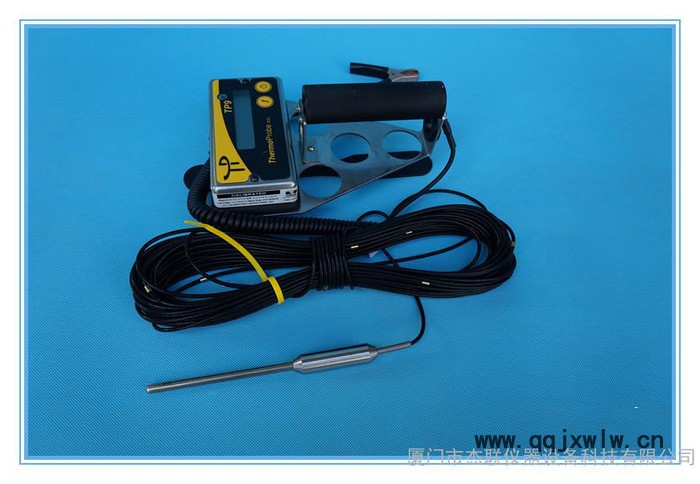

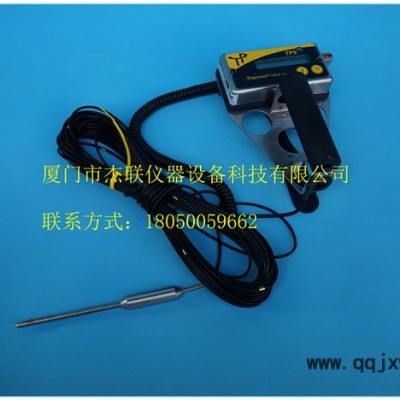

 PETROLEUM GAUGING THERMOMETER

 The TP9 employs the proven RTD design that has been used in the TP7 and TP8 for many years. A sealed industrial quality overlay provides a user interface that is easy to use with gloves. A stainless steel enclosure protects the circuit board and large LCD from penetration by impact, water and reactive liquids.

The new TP9 circuit board is an evolutionary step up from our highly accurate, reliable and successful TL1 laboratory thermometer. The Power Button’s primary function powers the instrument for intervals of about 20 minutes since the last button was accessed. The Power Button can also be used to conserve power and clear the memory, or to make adjustment while in calibration mode. A simple menu operation is displayed by holding the Function Button, and alternately functions to allow adjustments in the calibration mode. Arrows on the left side of the display show the direction of the temperature reading and whether stability has been reached. At the user’s discretion stabilized temperatures can be logged at numerous liquid levels for a running average and later displayed for the user’s documenting purposes. But this feature never interferes with simply getting an accurate temperature reading.

To endure the environment and be intrinsically safe, the TP 9 is manufactured of materials, which are both immune to petrochemicals and are non-sparking. The enclosure is made of stainless steel. The probe assembly is constructed using non-stick cable and stainless steel sensor components.

 SPECIFICATIONS

 Maximum Dimensions: 10”L x 4.25”H x 6.4” W

 Probe: 304 Stainless Steel, Sealant, Aramid Fiber Reinforced, FEP or PFA Cable Jacket, Coaxial Construction

 Enclosure Material: Stainless Steel  Acetal (Delrin) Probe Holder Polyvinylchloride Faceplate

 Batteries: 2 AA Alkaline; Battery Life of approximately 200 hours Battery manufacturer’s battery operating temperatature range -4 to 130°F, -20 to 54°C

Note: Battery may not provide adequate power if ambient temperature is extremely low or high.

 Temperature: Resolution 0.01

Range: -40 to +400°F

-40 to +204°C

Calibrated Accuracy:

±0.2°F from 32 to 200°F ±0.5°F from 200 to 400°F

±0.1°C from 0 to 100°C ±0.3°C from 100 to 200°C 4 Point NIST Traceable Report of Test

Long-term drift not to exceed 0.05%/year

Meets API requirements

 OPERATIonAL ATTRIBUTES

 Easily replaceable AA Batteries, provides an estimated *200 hours

operation.

Circuit logic automatically indicates low battery condition, automatically shuts off after twenty minutes, shows temperature trend and stabilization, displays error codes for failure determination.

The low power backlight for night operation is photo sensor controlled for convenience and battery conservation.

In nighttime conditions the backlight illuminates the display.

Celsius or Fahrenheit units with C/F indication can be easily selected from the Function Button.

User Manual explains intuitive calibration procedure that can be done through the external faceplate buttons.

 TYPICAL APPLICATIONS

 Custody Transfers, Inventory, Tank, Pipeline, Barge, Ship, Railcar, Tank Truck. (Recommended Operation: API 7, Intl. Safety Guide For Oil Tankers and Terminals.)

Other Applications: Proving Systems (API 4)

Materials: All petrochemicals, caustic, acid, alkalies, powders. Molasses, syrups, distilled spirits.
