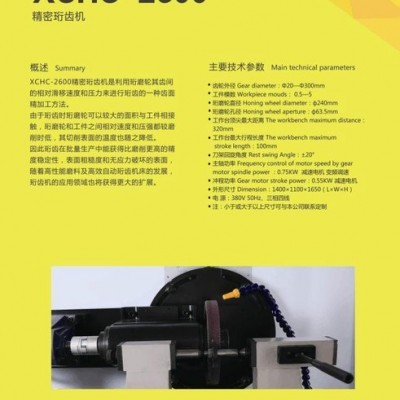

XCHC-2600精密珩齒機
    珩齒機是利用珩磨輪其齒間的相對滑移速度和壓力來進行珩齒的一種齒面精加工方法。由于珩齒時珩磨輪可以較大的面積與工件相接觸，珩磨輪和工件之間相對速度和壓強都較磨削時低，其切削表面的溫度也隨之降低。因此珩齒在批量生產中能獲得比磨削更高的精度穩定性，表面粗糙度和無應力破壞的表面，隨著高性能磨料及自動珩齒機床的發展，珩齒機的應用領域也將獲得更大的擴展。

主要技術規格

齒輪外徑：Φ20—Φ300mm
工件模數：0.5—5
珩磨輪直徑：ф240mm
珩磨輪孔徑：ф63.5mm
工作臺距離：320mm
工作臺長度：100mm
刀架回旋角度：±20°
主軸功率 ：0.75KW  減速電機 變頻調速
沖程功率：0.55KW 減速電機
外形尺寸：1400×1100×1650mm（長X寬X高）
電 源：380V 50Hz、三相四線
注：小于或大于以上尺寸可與本公司聯系定制

    The honing machine is a kind of tooth surface finishing method using the relative slip velocity and pressure between the teeth of honing wheel. As the honing wheel can have a large area to contact with the workpiece, the relative speed and pressure between the honing wheel and the workpiece are lower than the grinding time, and the temperature of the cutting surface is reduced accordingly. Therefore gear honing in batch production can gain higher precision than grinding stability, surface roughness and stress free surface, with high-performance abrasive and the development of efficient automatic gear honing machine, gear honing machine application domain will also gain greater extension

Gear diameter: Φ Φ 20-300 mm
Workpiece mouds: 0.5-5
Honing wheel diameter: ф240mm
Honing wheel aperture : ф 63.5mm
The workbench maximum distance: 320mm
The workbench maximum stroke length: 100mm
Rest swing Angle: ±20°
Frequency control of motor speed by gear motor spindle power: 0.75KW
Gear motor stroke power: 0.55KW
Dimension: 1400 * 1100 * 1100 mm(length X width X height)
Electricity source, 380 v, 50 hz, three phase four wire
Note: we can contact the company for customization if less than or above
